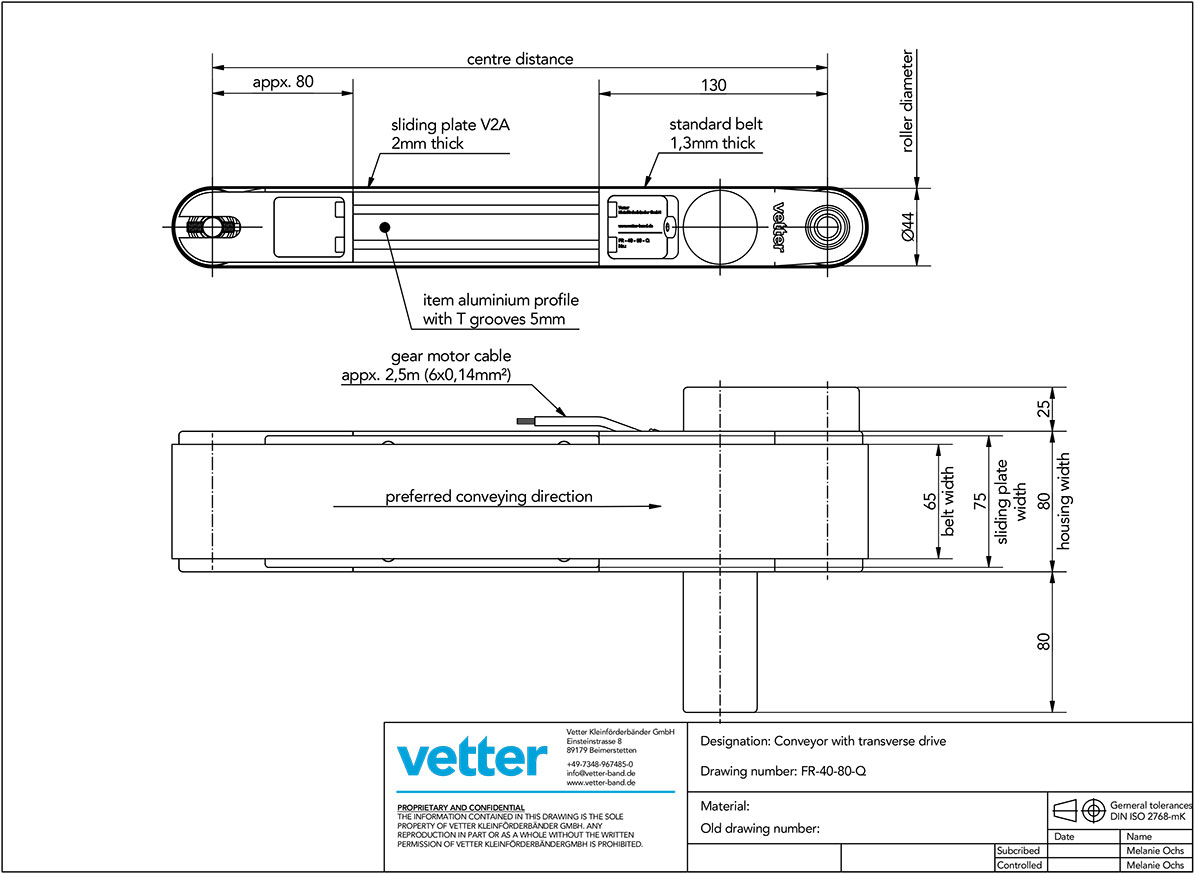

FR-40-80-Q

Conveyor with transverse drive

Belt Width 65mm
Housing Width 80mm
Housing Height 40mm
Centre Distance 300 - 1,600 mm
Maximum Load / Speed 20N: 2 - 30 m/min
40N: 4 - 24 m/min
100N: 1.5 - 10 m/min
Environmental Conditions Clean room
Dusty or oily
Humidity / water
Chips
Food contact
Pharmacy (sterile)
Clean and dry
Series Conveyor with transverse drive
Conveyor Belts Flat belt
Extensions Sliding supports (e.g. lateral guides)
Knife edge
Drive shaft stub
Encoder-drive shaft
Coupled Conveyors (2-track)
Setpoint device 24V voltage supply
Setpoint device
Vacuum

Further information:

  • Centre distances in mm (available at short notice): 300, 350, 400, 450, 500, 600, 700, 800, 900, 1,000, 1,200, 1,400, 1,600
    Custom centre distances on request

  • Conveyor speed can be selected dependent on max. conveyed load:
    • 5 - 30 m/min at max. 20 N or
    • 4 - 24 m/min at max. 40 N or
    • 1.5 - 10 m/min at max. 100 N

  • Supply voltage: 24 V DC

  • Standard conveyor belt: Green, FDA, antistatic (others available on request)

  • Also available with transmitted light unit

Powerful and quiet

Our small conveyor with transverse drive is extremely powerful and moves your conveyed goods particularly quickly and quietly, with low energy consumption. Since the motor has its own separate housing, it can be sealed for complete protection against the ingress of dust and liquids. The conveyor with transverse drive is therefore ideal in applications with ambient conditions which are not clean.

In the case of this product series as well, the motor is for the most part integrated in the housing and has no interference contours at the installation height, which facilitates integration in your systems.


Your advantages:

  • Drive housing can be sealed for complete protection against the ingress of dust and liquids.
  • Higher belt speeds
  • Motor integrated in the housing for the most part, with external cover for protection against contact
  • No interference contours at the installation height
  • Use of item aluminium profiles: Simple design and simple integration
  • 24 V extra-low voltage
    • No special protection measures required
    • Simple speed control optional
    • Low current input at high conveying capacity
  • Use of high-grade materials: Stainless steel and aluminium
  • Large selection of conveyor belts, as well as custom models
  • Service-friendly: Conveyors integrated in existing automation systems can be easily disassembled
